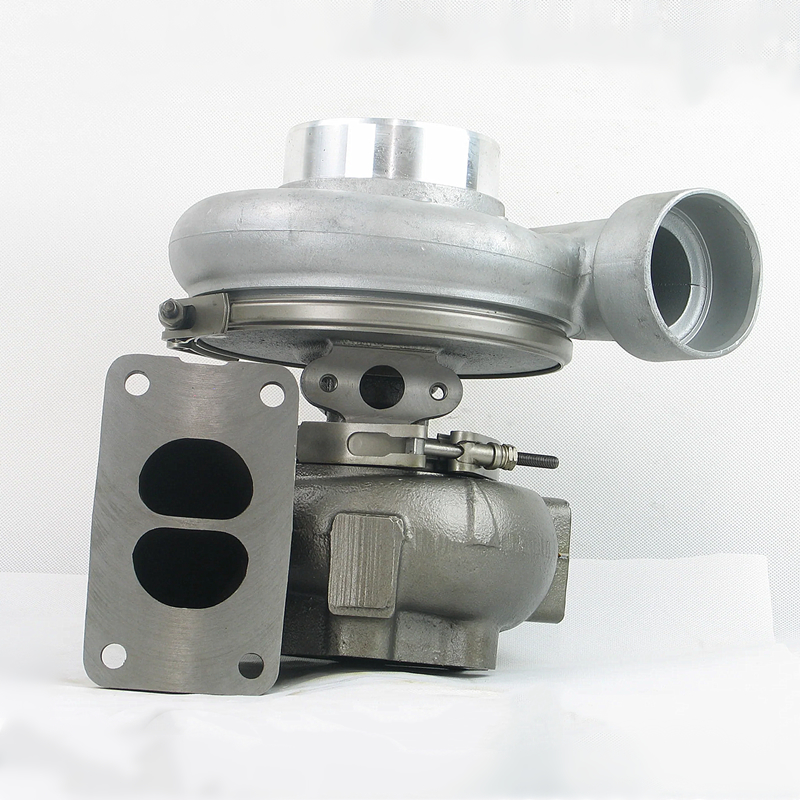

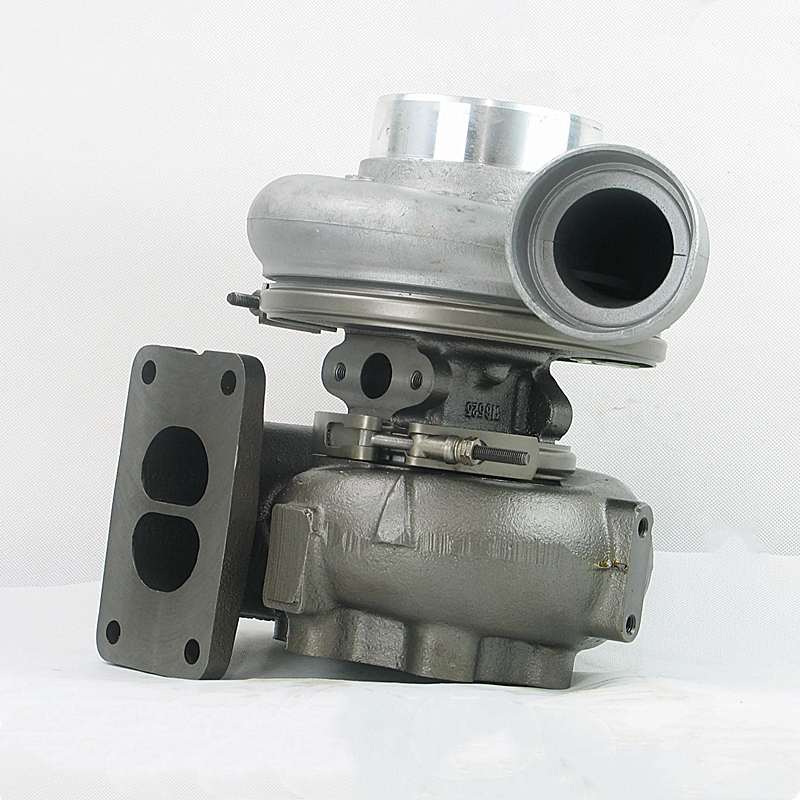

316699 53319887100 53319887104 5331-988-7100 A0060966699 S400 Turbocharger for Mercedes Benz Actros Truck Euro 3 OM501LA Engine

Evidenziare

Mercedes Benz Actros turbocharger
,
OM501LA engine turbocharger
,
S400 turbocharger with warranty
Tipo

turbocompressore
Compatibilità

Veicoli AUDI
Coppia

Migliorato
Potenza

Maggiore potenza
Materiale

Alluminio
Installazione

Facile installazione
Misurare

Compatto
Garanzia

Garanzia a vita limitata
Numero di parte

53319887104
Quantità di ordine minimo

Negoziazione
Prezzo

negotiable
Tempi di consegna

Negoziazione
Termini di pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

316699 53319887100 53319887104 5331-988-7100 A0060966699 S400 Turbocharger for Mercedes Benz Actros Truck Euro 3 OM501LA Engine

Name: 316699 53319887100 53319887104 5331-988-7100 A0060966699 S400 Turbocharger for Mercedes Benz Actros Truck Euro 3 OM501LA Engine
Brand: Guangzhou Kangruite Turbocharger Manufacturing and Trading Co.,Ltd.
Price: 1,510.00 USD
Availability: InStock

button button

Ottieni prezzo Contattaci

316699 53319887100 53319887104 5331-988-7100 A0060966699 S400 Turbocharger for Mercedes Benz Actros Truck Euro 3 OM501LA Engine

OE NO.

316699 53319887100 53319887104 5331-988-7100

Place of Origin

Guangdong, China

Brand Name

Kangruite

Material

K18

Type

COMPLETE TURBOCHARGER

Size

STANDARD SIZE

Model Number

S400

Truck Model

for Mercedes Benz Actros Truck

Part Number 1

316699 53319887100 53319887104 5331-988-7100

Part Number 2

317405R 317762 317762R 318052 318052R 0060966699

OE Number

5331-988-7104 316429 316429R 316699R 317405

Turbo Model

S400

Description

Actros Truck Euro 3 (Class 3-8)

Displacement

11.97L, 11950 ccm, V6 Cylinders

Turbine Wheel

Ind. 83.61 mm, Exd. 74.24 mm, Trm 13.84, 10 Blades

Comp. Wheel

Ind. 63.79 mm, Exd. 96.05 mm, Trm 6.98, 7+7 Blades, Superback

Fuel

Disesl

Engine

OM501LA, OM501LA Euro-3, OM501LA

316699 53319887100 53319887104 5331-988-7100 A0060966699 S400 Turbocharger for Mercedes Benz Actros Truck Euro 3 OM501LA Engine 0

Fits the following:

Part Number: 316699
Previous Version: 53319887127, 317405
OE Number: 0060966699, 0070966499, 0070967899, 0070964699, A0060966699, A0070966499,
A0070967899, A0070964699, 0070964799, A0070964799, 0080965999,A0080965999, 417495-A
Year: 1997-11
Description: Actros Truck Euro 3
Applications: 1997-11 Mercedes Benz Actros Truck Euro 3 with OM501LA Engine
Manufacturer Part Number: 316429, 317762, 318052, 317405, 53319707127
CHRA: 316700
Turbo Model: S400
Engine: OM501LA, OM501LA Euro-3, OM501LA
Displacement: 11.97L, 11950 ccm, V6 Cylinders
KW: 315/428 HP
Fuel: Diesel
RPM: 1800

Angle α (compressor housing): 54º
Angle β (turbine housing): 0º
Bearing Housing: 317028/315498
Turbine Wheel: 315273 (Ind. 83.6 mm, Exd. 74.4 mm, 6+6 blades)(1253400435)
Comp. Wheel: 169956 (Ind. 63.79 mm, Exd. 93.05 mm, 6+6 blades)
Back plate: 316010 (1253400300)
Heat shield Number: 315964
Repair Kit: 318396/318397 (1253400750)
Turbine Housing: 316431
Compressor Cover: 316424
Gasket (turbine inlet): 210648 (INOX Steel)
Gasket (turbine outlet): 210239 (Stainless Steel)
Gasket (oil outlet): 210060 (2475013)(Paper)
NOTE: Also for 230, 260 and 290 kW

FAQ

Q: How can i get the price?

A: We usually quote within 24 hours after we get your inquiry(Except the Spring Festival). If you are very urgent to get the
price, please contact us in other ways so that we can offer you a quote.

Q: Can I buy samples placing orders?

A: Yes.Please feel free to contact us.

Q: What is your lead time?

A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-7 days for small quantity, and about 30 days for large quantity.

Q: What is your payment term?

A: T/T,Western Union,L/C,and Paypal.This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
